M17 Deck Boat

M17

We designed the evolutionary Bayliner M17 to be the start of something new. It combines a stunningly affordable price familiar automotive-style handling, and class-leading stability and safety features. Plus, it has the power and comfort features to get you to the fun spots and enjoy every minute.

1. Award-winning Mercury® engine performance and reliability
2. Filler cushion turns bow into a sun lounger
3. High attention to detail, fit and finish in premium stitched upholstery and fixtures
4. Lightweight model for easy storage, trailering and handling
5. M-Hull foundation offers better stability and predictable handling
6. Molded-in storage and cupholders
7. Nook-style seating configuration of the cockpit, optimized for socializing
8. Simple, intuitive controls at the helm

rear of the Element M17 deck boat

Model Specifications

Length (Overall)
5.35 m
Width (Beam)
2.29 m
Max People Capacity
6
Max Horsepower Offered
100 HP
Fuel Capacity
68 L
Deadrise
16°
Approx Weight w/ Standard Engine
736 kg
Approx Weight w/ Trailer
1,114 kg
Max People Weight
645 kg
Height On trailer
1.83 m
Beam On Trailer
2.44 m
Storage Length
6.1 m

Standard Features

Cockpit
Cup Holder (9)
Grab Handles (4)
Mooring Cleats (4)
Fuel
68 Liter Internal Tank w/ Integrated Vent
Electrical
Battery Switch
Bilge Pump (Manual)
Helm
12V Accessory Outlet
12V Horn
Custom Sport Steering Wheel
Multi-Purpose Gauge: Speedometer, Voltmeter, Fuel
Side-Mounted Engine Controls w/ Trim & Tilt Switch in handle
Engine
60 HP Mercury® FourStroke EFI Outboard
Key Features
12V Navigation Lights
Bow & Transom Eyes (3)
Fiberglass Floor Liner
M-Hull Design
Single Helm Windscreen
Swim Platform w/ Telescoping Ladder

Available Colors

BUILD THIS BOAT

Available Options

Canvas

Mooring Cover
Snap-On Cover

Sound System

Waterproof AM/FM Stereo w/ Bluetooth

Windshield

Full Windshield w/ Opening Center Panel

Convenience Options

Digital Depth Indicator
Cockpit Table
7" Glass Dash Mercury

Seats & Upholstery

Bow Filler Cushion
Portside Lounge Seat
Bow Block Off (Requires Bow Filler Cushion)

Packages

Stainless Steel Upgrade Package

Water Sports

Ski Tow Pylon

Tops

Bimini Top with Boot

Exterior Color

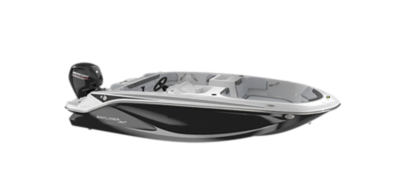

Solid Black Hull
Solid Black Hull

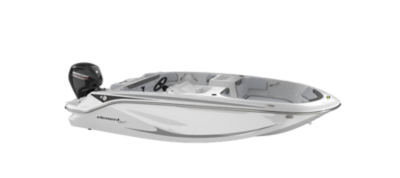

Solid White Hull
Solid White Hull

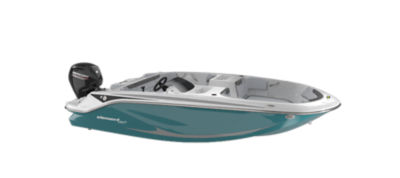

Kingfisher Blue Hull
Kingfisher Blue Hull

Engine

Blank, Mercury Outboard
60 HP Mercury Fourstroke ELPT
60 HP Mercury Fourstroke ELPT CT
80 Hp Mercury Fourstroke ELPT
100 HP Mercury Fourstroke ELPT
100 HP Mercury Fourstroke ELPT CT

Steering

Hydraulic Steering System

Floor Covering

Cockpit Flooring - Grey Mat

Want to learn more about this boat?

Contact a dealer
